Common Materials & Uses

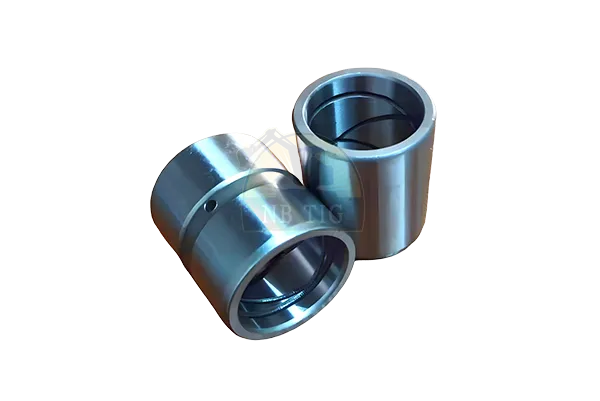

A bucket bushing is a cylindrical metal sleeve inserted into an excavator's pivot points to act as a sacrificial wear layer between the bucket and the pin. It absorbs digging stress and friction, protecting more expensive components like the arm or boom from direct damage.

Common Materials & Durability

Bushings are selected based on the machine's workload and operating environment:

Hardened Steel/Alloy Steel: Best for high-load, heavy-duty digging in rocky terrain or demolition. These are often heat-treated for maximum wear resistance.

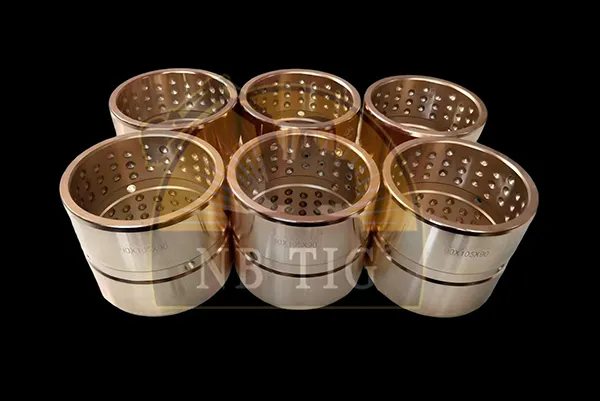

Bronze: Provides excellent natural lubricity and corrosion resistance, ideal for wet or muddy conditions.

Composite/Self-Lubricating: Features embedded lubricants (like PTFE) for low-maintenance or light-duty applications.

Recommended Product Options

Based on major equipment models, the following are common replacement options:

John Deere Steel excavator bushing (Ff535337)

Application: Aftermarket replacement for John Deere excavators.

Build: Manufactured to meet OEM specifications for a precise fit.

LPS Case/New Holland Bucket Cylinder Bushing (47827392)

Dimensions: 42 mm OD x 38 mm ID x 22 mm L.

Application: Fits Case and New Holland skid steer loaders.

Komatsu PC200 Dipper-at-Bucket Bushing (205-70-72130)

Application: Specifically fits Komatsu PC200, PC210, PC220, and PC240 series.

Role: Installed between the dipper arm and the bucket for pivot support.

General Aftermarket 80mm x 95mm x 80mm Bushing

Application: Universal-style bushing often used for caterpillar, Komatsu, JCB, Volvo, and Hitachi.

Dimensions: Inner Diameter (ID) 80 mm, Outer Diameter (OD) 95 mm, Height (HT) 80 mm.

Maintenance & Replacement Signs

Check for "Slop": Replace bushings if the gap between the pin and bushing exceeds 0.5mm. Excessive play leads to "hammering," which can crack the machine's arm.

Regular Greasing: For non-oilless types, grease daily or every 8 hours to prevent metal-on-metal wear.

Installation Tip: To make installation easier, many professionals store new bushings in a freezer overnight. The cold causes the metal to shrink slightly, allowing it to be tapped into the housing more easily.

bucket pins and bushings are the Critical Joints of Heavy Machinery .

Bucket pins and bushings are fundamental components in the linkage and articulation system of heavy machinery, most notably in excavators, backhoe loaders, and front-end loaders. They form the essential pivot points that connect the machine's major attachment components—such as the boom, arm (dipper), and bucket—allowing for the precise and powerful movement required for digging, lifting, and material handling.

Function and Partnership:

These components work in a precisely engineered partnership:

The Pin is a solid, high-strength steel cylinder that acts as a bolt or axle. It is inserted through aligned holes in two adjacent parts (e.g., the arm and the bucket), creating a hinge.

The Bushing is a durable sleeve, typically made of hardened steel or bronze, that is press-fitted into the bore of one of the connected components. The pin then rotates inside the bushing.

Key Purpose and Advantages:

1.  Enable Articulation:They provide the durable, low-friction pivoting points necessary for the complex curling and tilting actions of the bucket.

2.  Wear Management: This system is designed to manage and contain wear. The softer or specially treated bushing is intended to wear down over time instead of the more expensive and harder-to-replace structural components (like the arm or bucket ears). The pin is also hardened to resist wear.

3.  Load Distribution: They distribute immense shear and bending forces generated during digging and lifting across a larger surface area, protecting the main machine structure.

4.  Maintenance and Serviceability: When wear occurs, only the replaceable pin and bushing need to be swapped out during routine maintenance, which is far more cost-effective and time-efficient than repairing or replacing the major welded parts of the machine.

Materials and Maintenance:

Pins are typically manufactured from high-carbon or alloy steels and are often through-hardened or induction-hardened for extreme surface hardness. Bushings are commonly made from hardened steel, bronze, or polymer composites to provide a durable, low-friction surface. Proper lubrication through grease channels in the pins is critical to minimize wear and prevent seizure, where the pin and bushing fuse together due to friction and corrosion.
