bucket pins and bushings are the Critical Joints of Heavy Machinery .

Bucket pins and bushings are fundamental components in the linkage and articulation system of heavy machinery, most notably in excavators, backhoe loaders, and front-end loaders. They form the essential pivot points that connect the machine's major attachment components—such as the boom, arm (dipper), and bucket—allowing for the precise and powerful movement required for digging, lifting, and material handling.

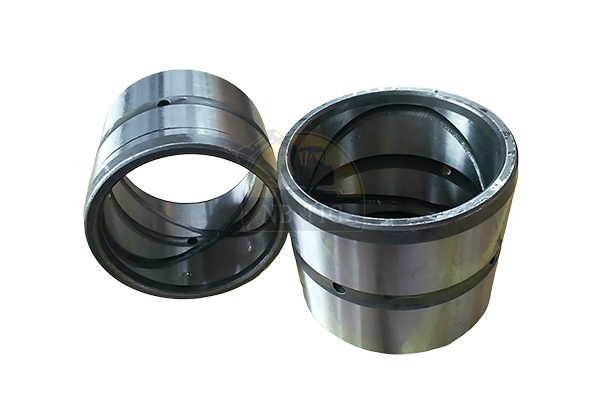

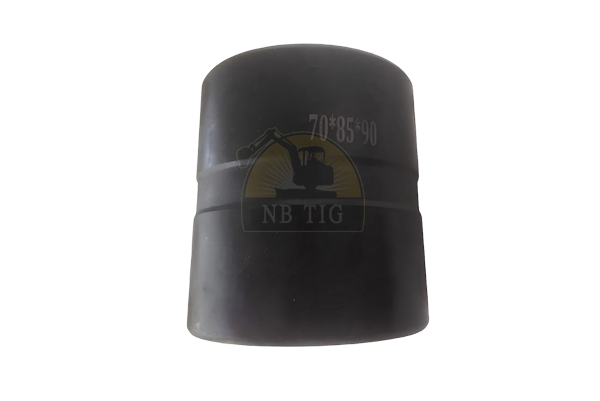

Precision engineered bushings are critical foundational components in hinge, rotation, and guiding mechanisms of construction equipment. They are widely used in excavators, bulldozers, loaders, cranes, and mining machinery, ensuring high-precision fit between pins and frames, reducing friction and wear, absorbing impact and vibration, and extending the service life of mechanical assemblies. Compared to standard bushings, precision bushings are manufactured to higher standards in alloy materials, dimensional accuracy, geometric tolerances, surface quality, and heat treatment stability, making them suitable for heavy loads, high-frequency oscillation, and harsh environments, and are essential for smooth operation, controlled clearance, and reduced failures.

1. Structure and Precision Features

1. High-Precision Dimensional Control
   Inner and outer diameters, length, coaxiality, and roundness are controlled with tight tolerances, ensuring stable fit and preventing looseness, jamming, or abnormal noise.

2. Superior Surface Quality
   Inner and outer surfaces are finely ground and polished, achieving low roughness. This ensures fast bedding-in, low friction, and significantly reduces pin scoring and abnormal wear.

3. Optimized Lubrication Design

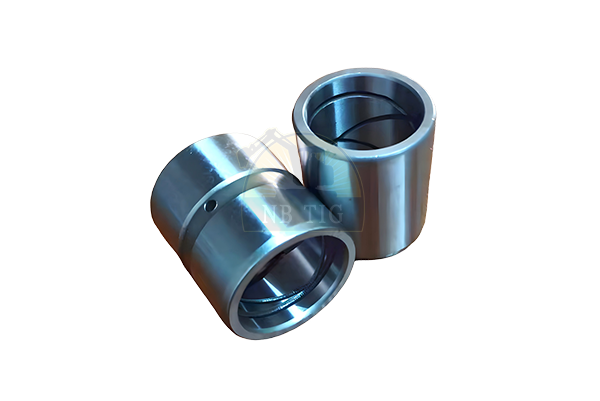

   Bushings often feature oil holes, helical grooves, or straight grooves to form continuous lubrication films, improving wear resistance under heavy loads.

4. High Structural Stability
   Uniform wall thickness and flat end faces distribute loads evenly. Under variable stress, the bushing resists deformation, collapse, and cracking, providing higher reliability.

2. Common Materials and Performance Comparison

3. Precision Manufacturing and Reinforcement Processes

1. Precision Forging / Cold Drawing
   Dense material structure and minimal internal defects ensure uniform mechanical properties, providing a solid foundation for high-precision machining.

2. Stabilized Heat Treatment
   Combination of quenching, tempering, carburizing, and cryogenic treatment eliminates internal stresses, ensuring long-term dimensional stability and resistance to deformation.

3. Fine Grinding and Ultra-Precision Machining
   High-precision grinding of inner and outer surfaces, strict control of coaxiality and cylindricity, ensures minimal clearance, low wear, and smooth operation.

4. Surface Strengthening
   Processes such as shot peening, oxidation, and phosphating improve fatigue strength, corrosion resistance, and tribological performance.

4. Performance Indicators and Application Value

Precision engineered bushings have a tensile strength of 900–1200 MPa, surface hardness of HRC50–62, dimensional tolerances up to IT7–IT8, and high-precision coaxiality and roundness. Their wear resistance is 2–3 times higher than standard bushings.

These bushings are widely applied in hinge points of construction equipment, including work attachments, frames, linkages, rippers, and slewing mechanisms. Even under heavy loads, impact, dust, and continuous operation, they maintain high precision and reliability. Using precision bushings significantly reduces equipment failure rates, extends maintenance cycles, minimizes downtime, and improves overall operational efficiency and cost-effectiveness of Construction Machinery.
