cutting edges and end bits are to suit dozers, scrapers, graders, loaders and excavators
TIGERLEVEL have a complete range of blades, edges and end bits, shanks, teeth, ripper tynes, router bits and plow bolts and nuts to suit virtually every machine. Customer parts can be made to suit specialist requirements.We stock a complete range of thicknesses in standard and heavy duty.Our bits and edges are heat treated through hardened, quenched and tempered alloy steel.

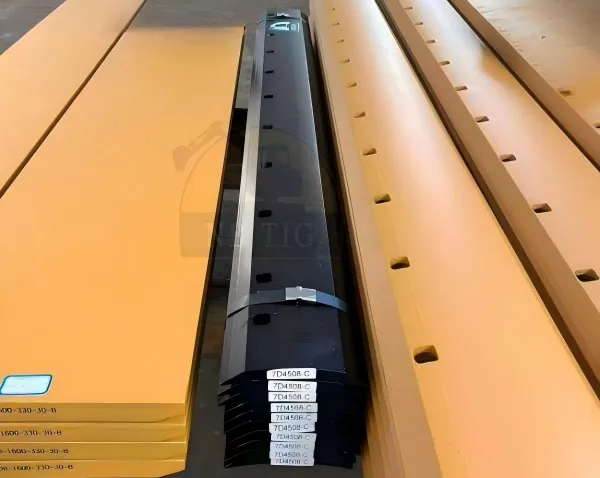

A wide range of grader blades is available in two specifiions
High Carbon steelC80, and 30MnB for
Double bevelled curved
Double bevelled flat
Flat Grader Blades
· Curved Grader Blades
· Serrated Grader Blades
A wide range of cutting edges is available in two specifiions
16Mn, and 30MnB for
Double bevelled Flat
Single bevelled flat
End bits
Blades and cutting edges are the frontline, wear components attached to the leading edges of buckets, blades, and other digging or grading attachments on heavy machinery like excavators, loaders, and bulldozers. They are the primary points of contact with abrasive materials like soil, rock, and rubble, designed to penetrate, cut, and slice through the ground efficiently while protecting the much more expensive base attachment from rapid wear.
1. Key Functions and Importance
Penetration and Efficiency: A sharp, robust cutting edge concentrates force onto a narrow area, significantly reducing the energy required to dig into compacted or frozen material, thereby improving machine productivity and fuel efficiency.
Material Protection: They act as a sacrificial wear part. Instead of the bucket's main body wearing down, the relatively inexpensive and easily replaceable cutting edge absorbs the abrasion.
Load Retention: Properly maintained edges help create a clean cut, allowing the bucket to fill more completely and retain material better during lifting and transport.
Specialized Tasks: Different profiles (e.g., straight, spade-nose, serrated) are optimized for specific applications like grading, trenching, or rock digging.
2. Materials and Manufacturing
Cutting edges and blades are typically made from **high-strength, abrasion-resistant steel (AR steel)**. This steel is alloyed and heat-treated to achieve an optimal balance of:
Surface Hardness: To resist abrasive wear (measured on the Brinell or Rockwell scale).
Core Toughness: To withstand high-impact loads without cracking or breaking.
Manufacturing processes like quenching and temperingare critical to achieving these properties. Some advanced edges may also feature hardfacing—a layer of extremely hard weld material applied to critical wear zones for extended life.
3. Maintenance and Economics
Regular Inspection and Rotation: Straight cutting edges can often be rotated (flipped top to bottom) to utilize both wear surfaces before replacement. End bits and teeth should be checked for excessive wear or breakage.
Timely Replacement: Worn-out edges dramatically increase digging resistance, strain the machine's hydraulic system, accelerate wear on the base bucket, and lead to higher fuel consumption. Replacing them on schedule is a key cost-saving maintenance practice.
Loader Blades and Cutting Edges are essential components for loaders and skid steer machines. They serve as the primary interface between the equipment and the material being moved, enabling efficient excavation, loading, grading, and leveling tasks. High-quality blades and cutting edges can improve productivity, reduce wear on the loader bucket, and extend the overall life of the equipment.
The cutting edges of a loader determine its efficiency and durability. These components:
Enhance material penetration: Sharp, strong edges allow loaders to penetrate soil, gravel, and other materials easily.
Protect the loader bucket: Cutting edges absorb most of the wear, preventing damage to the bucket structure.
Increase operational lifespan: Using durable materials and proper maintenance ensures long-term performance.
Improve safety and efficiency: Consistent cutting performance reduces operator fatigue and improves work quality.
By choosing the right loader blades and cutting edges, operators can maintain high productivity while minimizing maintenance costs.
Loader blades and cutting edges are exposed to heavy abrasion, impact, and friction. Material selection is crucial to balance hardness, toughness, and wear resistance. The following table summarizes typical materials used:
| Material | Hardness (HRC) | Toughness | Wear Resistance | Impact Resistance | Processing |
|---|---|---|---|---|---|
| Carbon Steel | 45-50 | Medium | Medium | High | Easy |
| Alloy Steel | 50-55 | High | High | High | Moderate |
| Boron Steel | 55-60 | Medium-High | Very High | Medium | Moderate |
| Heat-Treated Steel | 50-60 | High | Very High | High | Moderate |
| Cast Steel | 45-50 | Medium | Medium | Medium | Easy |
Notes:
Boron steel and heat-treated steel are ideal for high-wear applications, offering extended service life.
Alloy steel provides a balance between durability and toughness, suitable for general loader operations.
Carbon steel is cost-effective but may require more frequent replacement in abrasive environments.
Straight Cutting Edges – Standard option for general excavation and leveling tasks.
Curved Cutting Edges – Designed to improve penetration and reduce material spillage.
bolt-on cutting edges – Easy to replace, protecting the bucket and minimizing downtime.
Reversible Cutting Edges – Can be rotated to extend the service life of the blade.
Specialized Heavy-Duty Edges – Optimized for mining, gravel, and abrasive applications.
Different designs and materials allow operators to select edges based on specific operational requirements.
Proper maintenance ensures maximum performance and longevity of loader blades:
Regular inspection: Check for wear, cracks, and deformation.
Timely replacement: Replace worn edges before they damage the loader bucket.
Correct installation: Ensure edges are securely bolted and aligned.
Appropriate material selection: Match edge material to operational conditions for optimal performance.
Maintaining loader blades properly can significantly reduce operational costs and increase safety.
Loader blades and cutting edges are vital for Efficient Material Handling and construction operations. Choosing high-quality materials like boron steel or heat-treated steel, combined with proper edge design and maintenance, ensures long service life, high wear resistance, and consistent performance. These components are indispensable for loaders, skid steers, and other heavy machinery operating in construction, mining, and industrial environments.
