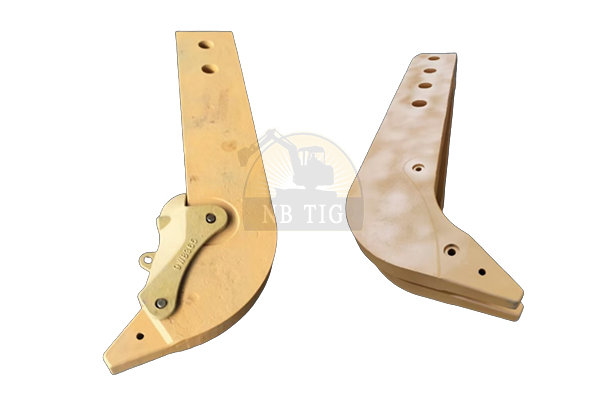

Heavy-duty Replacement Ripper Shanks are critical replaceable components for bulldozers and excavators operating in mining, quarrying, and infrastructure projects under heavy-load conditions. They are primarily used for loosening and breaking hard soil, frozen ground, weathered rock, and solid rock layers.

Designed with a focus on high strength, high toughness, strong interchangeability, and fast replacement, these shanks adopt a modular structure. When worn or damaged, the shank can be replaced individually without changing the entire ripper assembly, significantly reducing maintenance costs and downtime.

To meet the demands of continuous heavy-duty operation, the shank is reinforced in material selection, structural design, heat treatment, and connection methods, ensuring reliable performance under high impact, bending stress, and abrasive wear conditions.

1. Structural Features and Replacement Advantages

1. Modular Replaceable Design

The shank features an independent split-type structure connected to the ripper bracket via pins. Disassembly and installation are simple, enabling quick replacement and significantly improving construction continuity.

2. Reinforced Heavy-Duty Geometry

The shank adopts a large cross-sectional, streamlined tapered structure that gradually narrows from root to tip. This design ensures strong penetration capability while enhancing overall bending and impact resistance.

3. Large Radius Root Transition

The connection area incorporates a large-radius arc transition to reduce stress concentration, effectively lowering fatigue fracture risks under repeated high-frequency impacts and extending service life.

4. Standardized Universal Interface

Connection dimensions, pin spacing, and installation angles comply with common industry standards, allowing compatibility with multiple brands of bulldozers and excavators in the same tonnage range, ensuring strong interchangeability.

2. Common Materials and Performance Comparison

3. Manufacturing Process and Performance Assurance

1. Integral Forging Process

Precision forging ensures a dense microstructure with refined grains, eliminating internal porosity and defects. Mechanical properties are significantly superior to conventional cast components.

2. Overall Quenching and Tempering

Quenching followed by high-temperature tempering maintains high core toughness and strong surface strength, achieving a balanced “tough core and hard surface” structure with excellent impact and bending resistance.

3. Localized Tip Reinforcement

Working areas undergo surface hardening or shot peening treatment to increase hardness and wear resistance, maintain tip geometry, and enhance continuous breaking capability.

4. Dimensional Accuracy Control

Critical connection dimensions are strictly controlled within tolerance to ensure precise installation after replacement, proper fitting clearance, and elimination of abnormal noise or uneven wear.

4. Application Range and Performance Value

Heavy-duty replacement ripper shanks are widely compatible with 20–60 ton bulldozers and excavators. They are commonly used in mining operations, rock breaking, roadbed excavation, and frozen ground removal under high-intensity working conditions.

Typical mechanical properties include:

• Tensile Strength: 1000–1200 MPa

• Impact Toughness: ≥50 J/cm²

• Tip Hardness: HRC 52–58

• Service Life: 1.5–3 times longer than standard shanks

The modular replacement design significantly reduces maintenance costs and downtime while improving Construction Efficiency and economic returns. These shanks are ideal supporting components for heavy Construction Machinery operating in demanding environments.
