Bucket teeth and adapters are critical wear parts used in excavation, mining, construction, and material handling equipment. Together, they form a durable, replaceable cutting edge system for buckets on excavators, loaders, and backhoes, significantly enhancing productivity and protecting the bucket itself. We can make the teeth and adapters fit for caterpillar , Komatsu ,Hitachi ,Hyundai ,Daewoo , Doosan , Esco , Case , Kobelco , Volvo , Hensley ,H&L, ，Sany，Liugong, xcmg etc.
1.Key Features
Penetration & Efficiency: Their sharp or reinforced profiles reduce digging resistance, allowing for faster and more efficient material breakout.
Wear Resistance:Manufactured from high-strength, abrasion-resistant alloy steel (often through forging or casting), they withstand extreme abrasion and impact.
Variety of Profiles: Different shapes (e.g., sharp, conical, rock, and twin-teeth) are optimized for specific materials and applications.
Replaceability:As consumable parts, they can be replaced individually when worn, avoiding the need to change the entire bucket.
2. Key Benefits:
Increased Productivity: Improves digging efficiency and cycle times.
Cost Savings: Protects the more expensive bucket lip from wear, extending its lifespan. Replacing only teeth and adapters is far more economical.
Versatility:Operators can change tooth types for different earth conditions (e.g., general purpose vs. rock penetration).
Operational Safety: Prevents premature failure of the bucket edge and maintains optimal machine performance.

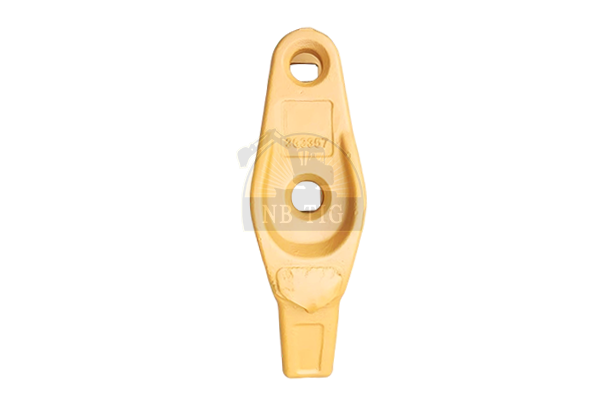

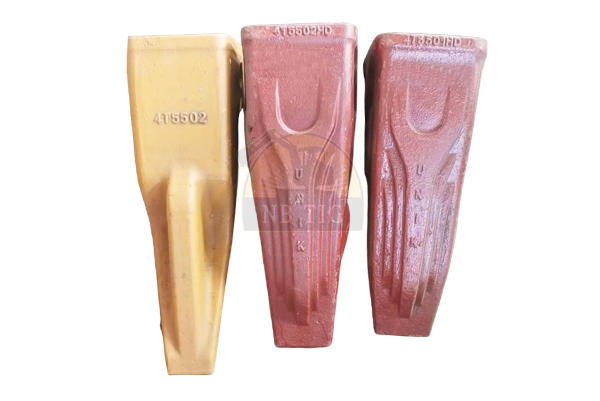

Tractor Bucket teeth are essential wear-resistant components designed for wheel tractors and agricultural loaders. They are mainly used in farmland dredging, soil excavation, sand and gravel loading, straw collection, and light material crushing. These teeth directly withstand cutting, impact, and abrasive forces. Compared with large construction bucket teeth, tractor bucket teeth emphasize versatility, cost-effectiveness, and ease of replacement, making them ideal for small to medium loads and multi-scenario agricultural operations. Their structure, material, and installation type directly affect service life and operational costs.
Tractor bucket teeth typically use a modular structure consisting of the tooth tip, tooth body, and tooth base. The base is secured to the bucket adapter using bolts or pins. Worn tips can be replaced individually without replacing the entire adapter, significantly reducing maintenance costs.
Based on agricultural working conditions, tractor bucket teeth are generally classified into three types, as summarized in the table below:
| Tooth Type | Structural Features | Suitable Applications | Core Advantages |
|---|---|---|---|
| Standard General-Purpose | Small and lightweight, uniform body, rounded tip | Ordinary soil, pond mud, manure, light sand and gravel loading | Highly versatile, moderate cost, suitable for most agricultural tasks |
| Penetration Sharp Tip | Sharp tip, narrow elongated body, optimized cutting angle | Hard soil, frozen ground, clay, root clearing | Strong penetration, low digging resistance, improves excavation efficiency |
| Flat Wide Tooth | Straight cutting edge, wide flat body, even stress distribution | Ground leveling, debris clearing, straw and grain handling | Smooth scraping, resistant to chipping, minimal material residue |
Tractor bucket teeth are mainly made from low-alloy wear-resistant cast steel, with common grades including 30CrMnSi and ZG30Mn, balancing economy and durability. Teeth are produced through full casting, annealing, and quenching plus low-temperature tempering. The tip surface hardness reaches HRC 45–52, while the core maintains good toughness, providing both wear resistance and impact protection in abrasive agricultural environments. Some economical versions use medium-carbon manganese steel to meet light-load requirements.
Tractor bucket teeth are designed for small tractor buckets, with lengths of 120–200 mm and widths of 35–60 mm. Typically, 3–5 teeth are evenly distributed across the bucket width. Bolted installation is most common, allowing quick and convenient replacement using a standard wrench. A single operator can replace one tooth within 15 minutes, meeting the high-frequency maintenance and operational needs of farmers.
Under normal agricultural conditions, service life is approximately 1–2 months, while high-abrasion sand and gravel reduce life to 3–4 weeks. Before operation, bolt tightness should be checked and retightened if needed to prevent tooth displacement. Worn teeth exceeding one-third of the original size should be replaced to protect the adapter. Selecting the appropriate tooth type for specific materials and following proper maintenance procedures can extend service life and reduce operational costs.
